Spring-applied brakes

Explore models, published specifications and manufacturer documentation.

67 components

Spring-applied brakes67 models

Robotics components with published specifications and available resources
Component	Verified	Series	Key specifications	Price
KEB AutomationModel COMBISTOP 08 size 00	Not verified	COMBISTOP 08 configurable brakes	Static holding torque — Outer diameter 59.5 mm Mass —	Request price

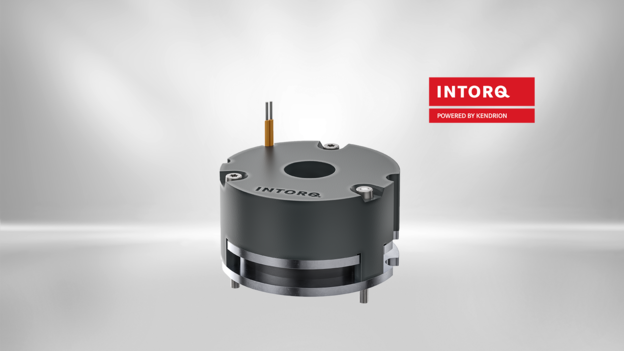

KendrionModel INTORQ BFK551 size 01 holding version (configurable size)	Not verified	INTORQ BFK551 holding brakes / INTORQ BFK551 size 01 holding version (configurable size)	Static holding torque — Outer diameter 37 mm Mass —	Request price
mayrModel ROBA servostop Classic size 100 (configurable size)	Not verified	ROBA servostop Classic / ROBA servostop Classic size 100 (configurable size)	Static holding torque — Outer diameter 102 mm Mass 1.7 kg	Request price

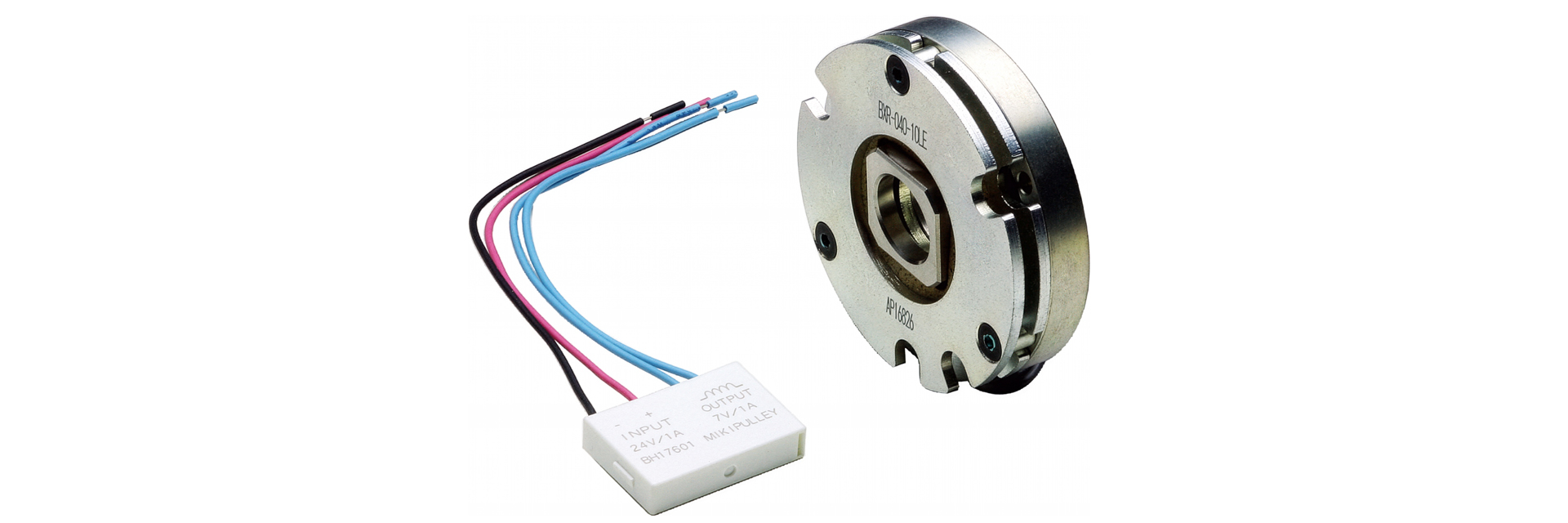

Miki PulleyModel BXR-015-10LE	Not verified	BXR-LE spring-applied holding brakes	Static holding torque 0.06 N·m Outer diameter 26 mm Mass 0.03 kg	Request price

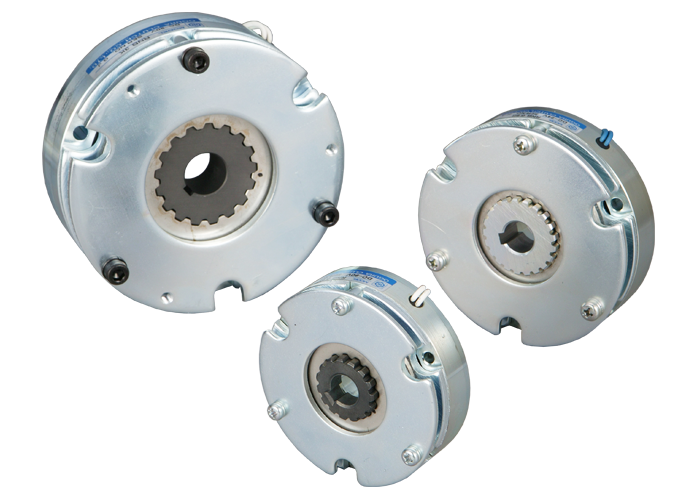

Ogura ClutchModel RNB0.2G-N	Not verified	RNB-N spring-applied holding brakes	Static holding torque 2 N·m Outer diameter 77 mm Mass 0.6 kg	Request price

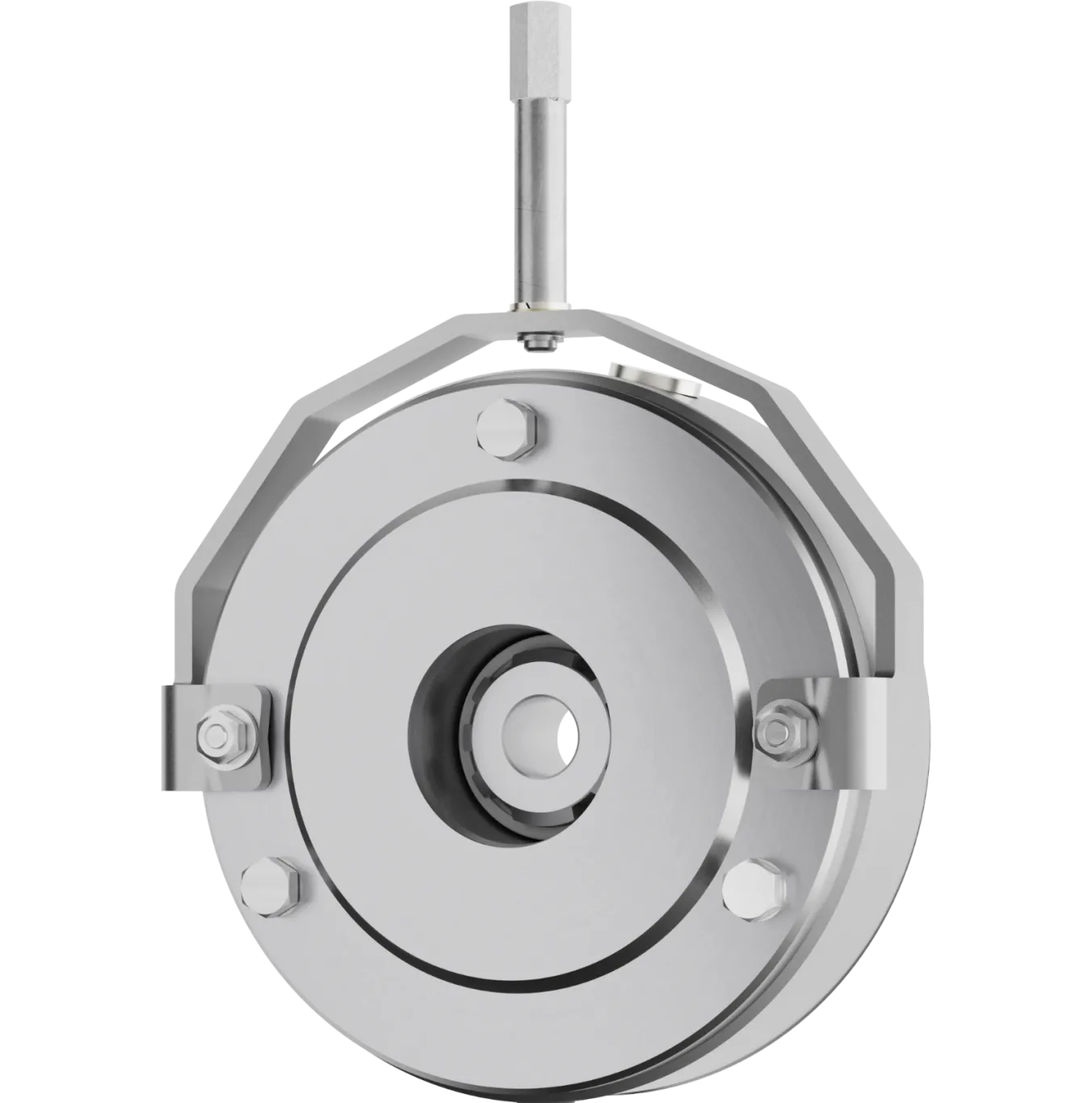

PRECIMA MagnettechnikModel FDS 08	Not verified	FDS configurable spring-applied holding brakes	Static holding torque — Outer diameter — Mass —	Request price

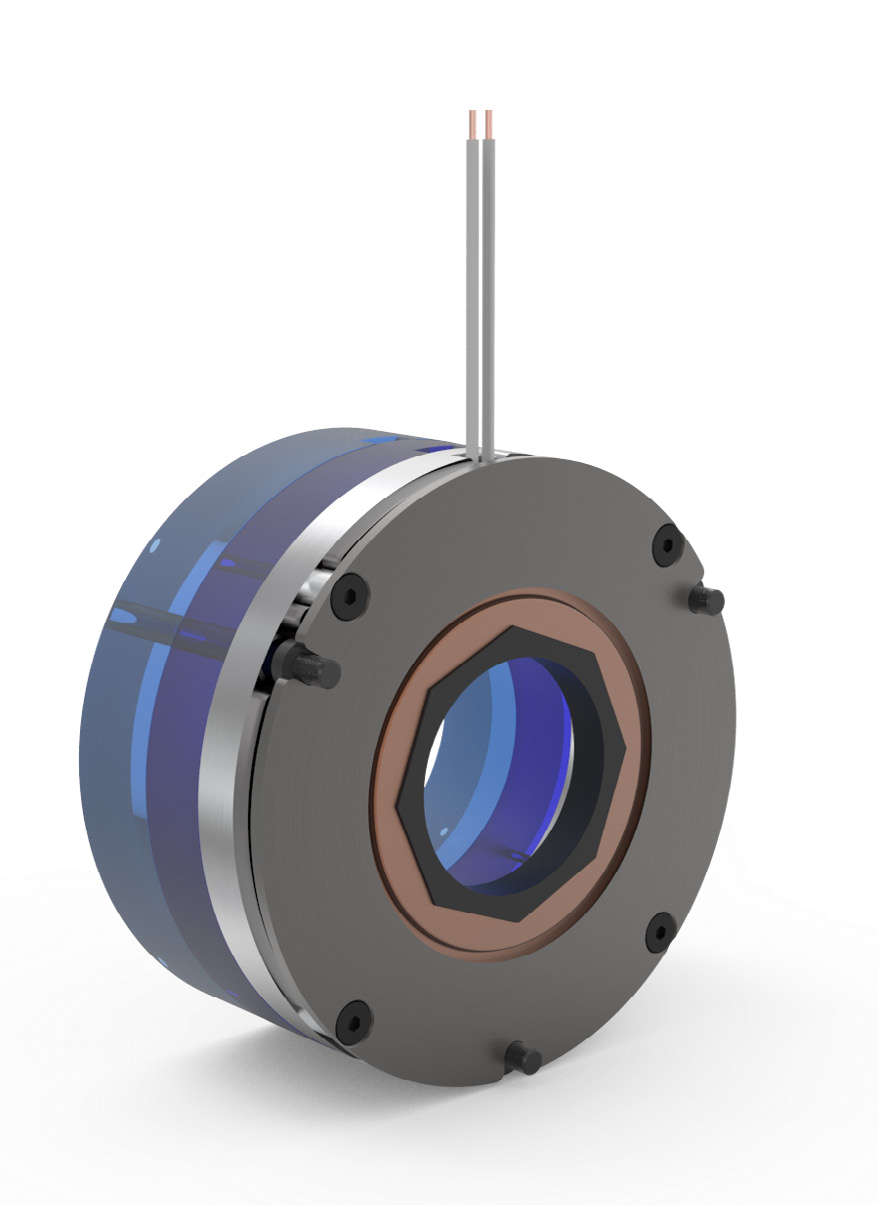

Warner ElectricModel WR230	Not verified	WR-Thin VAR00 configurable holding brakes	Static holding torque — Outer diameter 50 mm Mass —	Request price
KEB AutomationModel COMBISTOP 08 size 0B	Not verified	COMBISTOP 08 configurable brakes	Static holding torque — Outer diameter 40 mm Mass —	Request price
KendrionModel INTORQ BFK551 size 02 holding version (configurable size)	Not verified	INTORQ BFK551 holding brakes / INTORQ BFK551 size 02 holding version (configurable size)	Static holding torque — Outer diameter 47 mm Mass —	Request price
mayrModel ROBA servostop Classic size 120 (configurable size)	Not verified	ROBA servostop Classic / ROBA servostop Classic size 120 (configurable size)	Static holding torque — Outer diameter 124 mm Mass 2.66 kg	Request price
Miki PulleyModel BXR-020-10LE	Not verified	BXR-LE spring-applied holding brakes	Static holding torque 0.14 N·m Outer diameter 32 mm Mass 0.06 kg	Request price
Ogura ClutchModel RNB0.2K-N	Not verified	RNB-N spring-applied holding brakes	Static holding torque 2 N·m Outer diameter 77 mm Mass 0.6 kg	Request price
PRECIMA MagnettechnikModel FDS 10	Not verified	FDS configurable spring-applied holding brakes	Static holding torque — Outer diameter — Mass —	Request price
Warner ElectricModel WR240	Not verified	WR-Thin VAR00 configurable holding brakes	Static holding torque — Outer diameter 70 mm Mass —	Request price

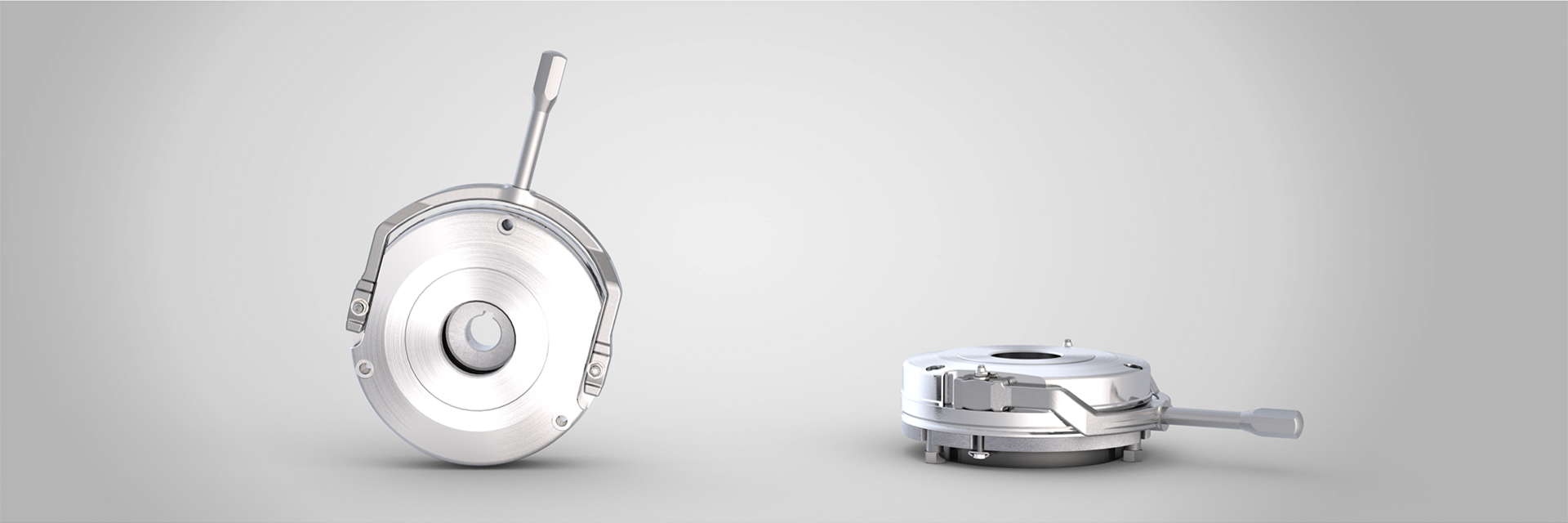

KEB AutomationModel COMBISTOP 38 size 02	Not verified	COMBISTOP 38 configurable brakes	Static holding torque — Outer diameter 85 mm Mass —	Request price
KendrionModel INTORQ BFK551 size 03 holding version (configurable size)	Not verified	INTORQ BFK551 holding brakes / INTORQ BFK551 size 03 holding version (configurable size)	Static holding torque — Outer diameter 56 mm Mass —	Request price
mayrModel ROBA servostop Classic size 140 (configurable size)	Not verified	ROBA servostop Classic / ROBA servostop Classic size 140 (configurable size)	Static holding torque — Outer diameter 147 mm Mass 4.37 kg	Request price
Miki PulleyModel BXR-025-10LE	Not verified	BXR-LE spring-applied holding brakes	Static holding torque 0.32 N·m Outer diameter 39 mm Mass 0.08 kg	Request price
Ogura ClutchModel RNB0.4G-N	Not verified	RNB-N spring-applied holding brakes	Static holding torque 4 N·m Outer diameter 85 mm Mass 0.85 kg	Request price
PRECIMA MagnettechnikModel FDS 13	Not verified	FDS configurable spring-applied holding brakes	Static holding torque — Outer diameter — Mass —	Request price
Warner ElectricModel WR250	Not verified	WR-Thin VAR00 configurable holding brakes	Static holding torque — Outer diameter 92 mm Mass —	Request price
KEB AutomationModel COMBISTOP 38 size 03	Not verified	COMBISTOP 38 configurable brakes	Static holding torque — Outer diameter 102 mm Mass —	Request price
KendrionModel INTORQ BFK551 size 04 holding version (configurable size)	Not verified	INTORQ BFK551 holding brakes / INTORQ BFK551 size 04 holding version (configurable size)	Static holding torque — Outer diameter 65 mm Mass —	Request price
mayrModel ROBA servostop Classic size 160 (configurable size)	Not verified	ROBA servostop Classic / ROBA servostop Classic size 160 (configurable size)	Static holding torque — Outer diameter 166 mm Mass 6.11 kg	Request price
Miki PulleyModel BXR-035-10LE	Not verified	BXR-LE spring-applied holding brakes	Static holding torque 0.62 N·m Outer diameter 48 mm Mass 0.12 kg	Request price
